FINE

All Fine shower trays are only available with the PL finish.
All Fine plates are manufactured in standard sizes of 70-100cm wide and 80-200cm long. Also in personalized measure.

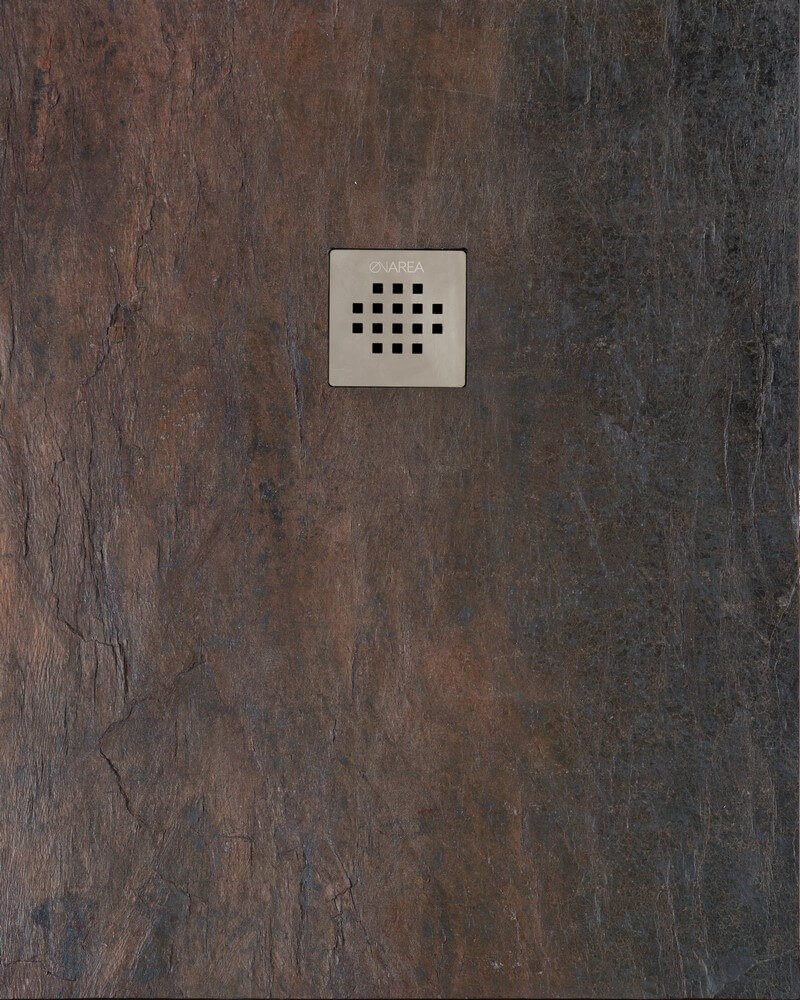

DCR 2720 fine 03 - FINE

FINE 03
80x100x3

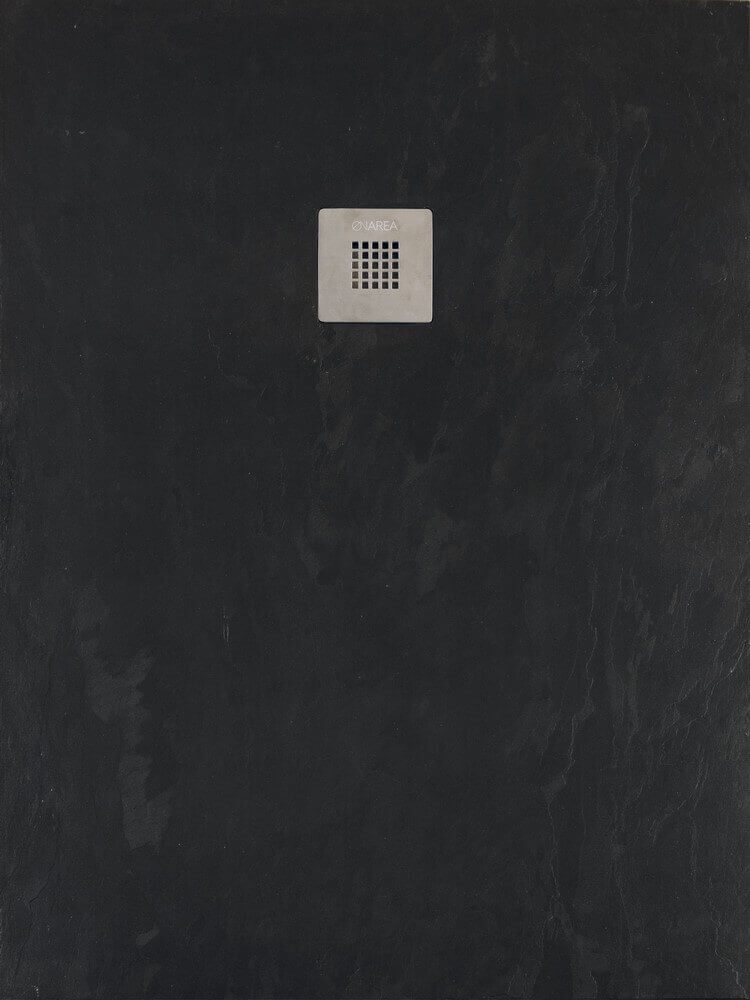

DCR 3905 fine 01 - FINE

FINE 01
90x120x3

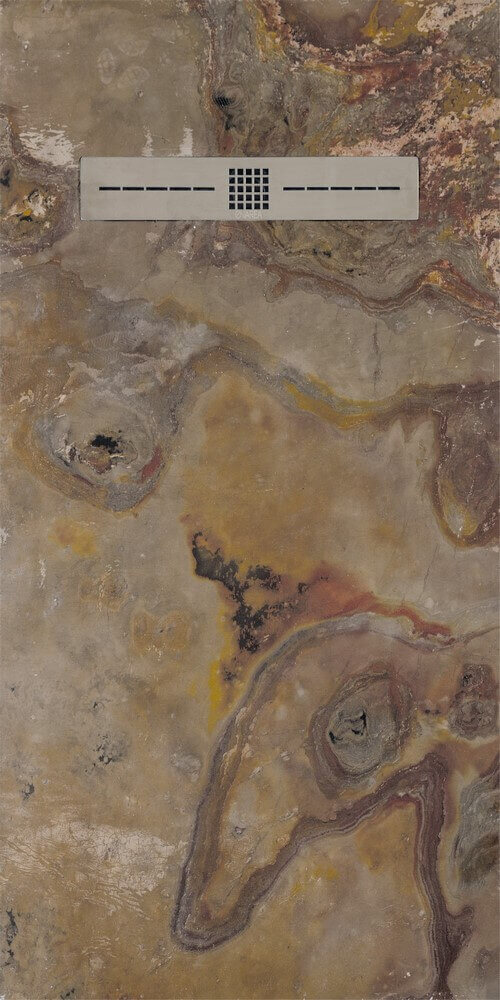

DCR 3911 Fine 04 - FINE

FINE 04
80x160x3

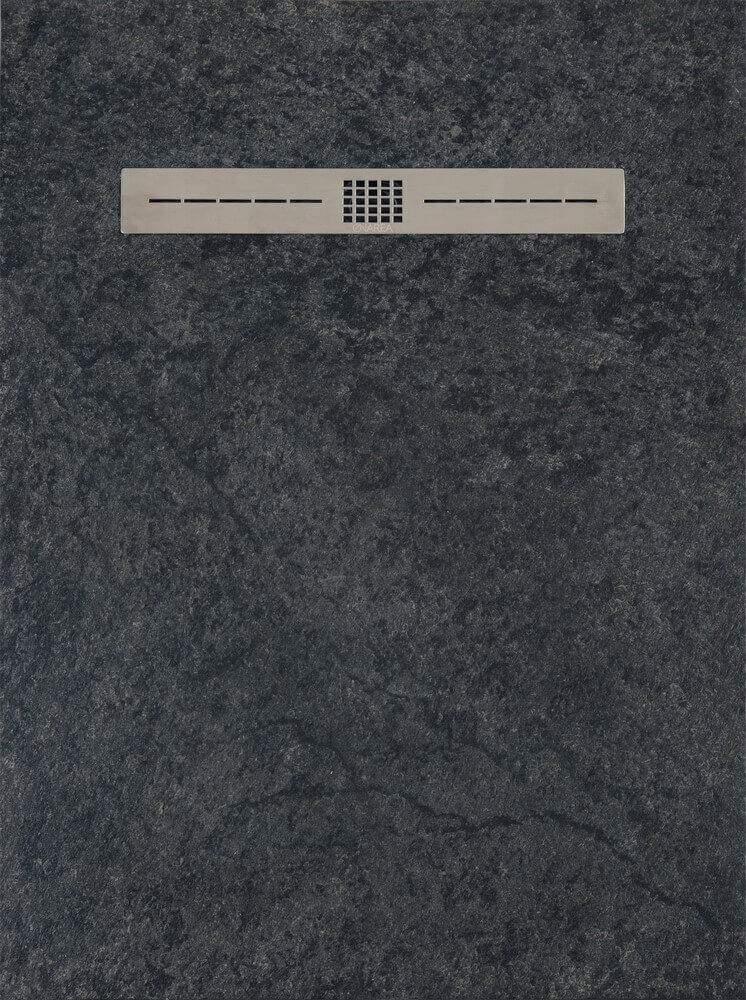

DCR 2718 Fine 05 - FINE

FINE 05
80x120x3

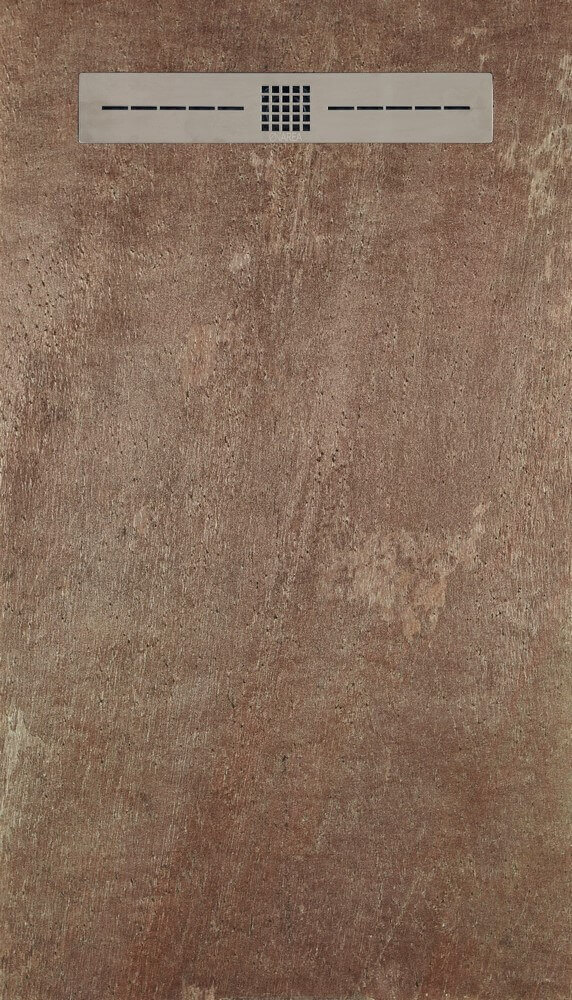

DCR 2696 FINE 08 - FINE

FINE 08
90x160x3

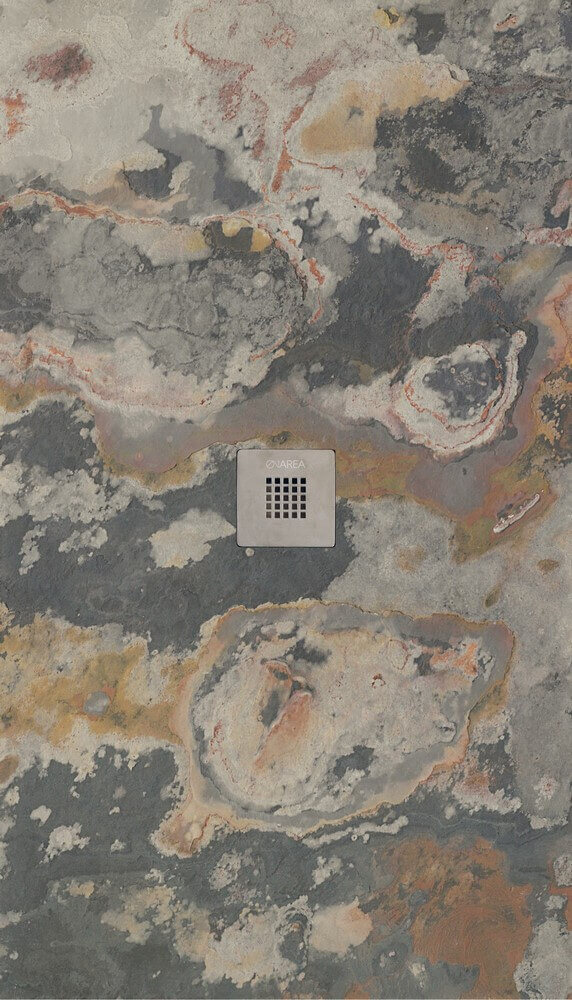

DCR 2696 FINE 07 - FINE

FINE 07
90x160x3

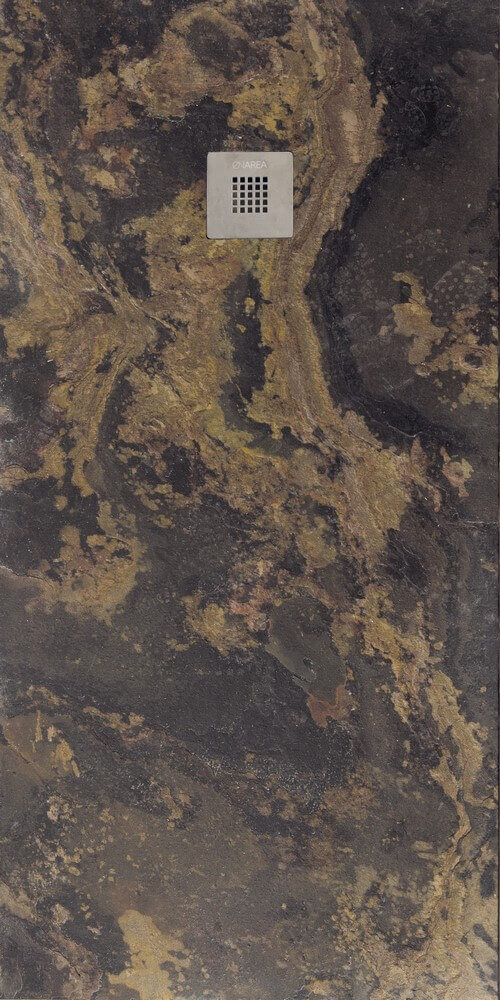

DCR 2657 fine14 - FINE

FINE 14
80x160x3

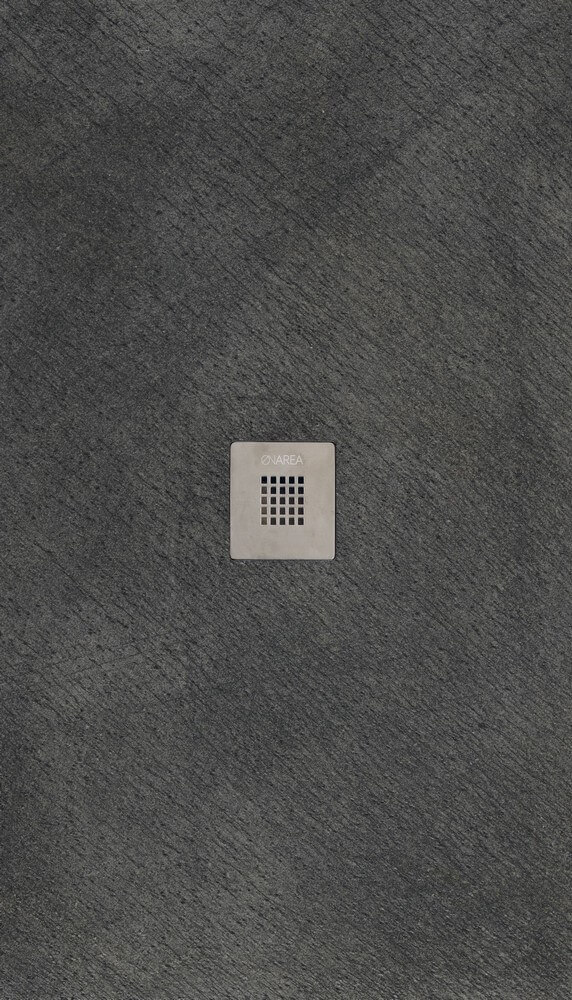

DCR 2696 FINE 09 - FINE

FINE 09
80x140x3

SETTING

Fine offers 5 configuration levels according to:
A. Plate finish.
B. Plate dimensions.
C. Type of drain.
D. Location of glass or screen.
E. Location of the plate with respect to the ground.

A

The Fine trays are made of Flextone®, a natural stone sheet, on a resin plate. It can be served with visible edges or lined at an angle, available in the finishes BR, CA, TR, PL.

A flextone resina - FINE

A. Flextone® on resin. .

B flextone canteado - FINE

B. Flextone® edged.

B.

Available sizes range from 70 to 100 cm wide and 70 to 200 long (at 10 cm intervals).
It is also made to measure and with personalized necklines.

B a medida con escotes - FINE

X.70/80/90/100
Y. 70/80/90/100/110…./200

C

The location of the drain can also vary and the type of grate can be CU or TR.

C cu - FINE

CU:

C tr - FINE

TR:

D

The crystal can be located in three different ways:

D sobre plato - FINE

A. On the plate.

D junto plato - FINE

B. Next to the plate.

D encastrado - FINE

C. Embedded.

AND

The dishes have three placement options with respect to the ground.

E sobre el suelo - FINE

A: On the ground.

E a ras de suelo - FINE

B: At ground level.

E elevado - FINE

C: High.
